JS-2335 |
|

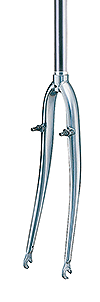

JS-709D |
|
JS-503 |
|

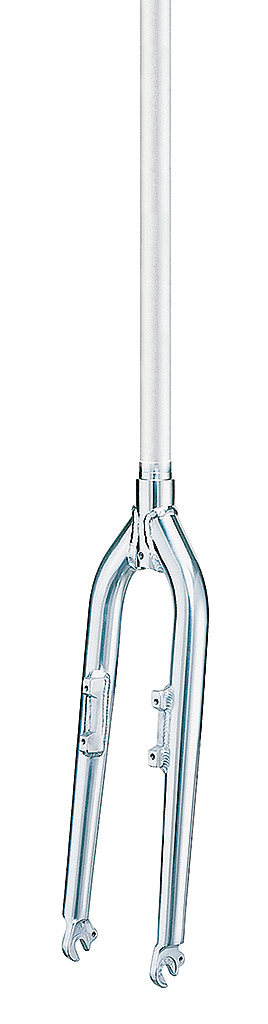

JS-505 |
|
| |
|
For Chopper style
With extended blades Dual forged
Alloy crown
Stem: Ø1”, 1-1/8”,
Blade: Ø30mm
Cr-Mo and Hi-Ten body are available Painting, C-P finished
Offset: 68mm(regular size)
|
|
For 700C Treeking bike
Stem: Ø1”, o1-1/8”
Cr-Mo, Hi-Ten
Blades: “D” shaped Ø 35mm x 17mm tip,
Forged ends
Cr-Mo, Hi-Ten
Offset: 45mm (regular size)
|
|
For jump bike 24-26” type
Stem: Ø1”, o1-1/8”
Cr-Mo, Alloy
Blades: Alloy #7005-T6 in Ø 28.6mm, Hummock shap Ø 22mm tip,
Finished: Raw,Hi-polished, Painting.
Offset: 45mm (regular size)
|
|
For jump bike 20”-26” type alloy body
For disc brake(Margura)
Stem: Ø1”, 1-1/8”
Cr-Mo, Alloy
Blades: Alloy #7005-T6 Ø31.8mm x 23mm tip forged ends(Hi-Ten,
Cr-Mo are available), V brake pivots are available
Raw, Painting, Polished, finished.
Offset: (regular size) |
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
JS-506 |
|
JS-2337 |
|
JS-500 |
|
JS-2328 |
|
| |
|
For jump bike 20”-26” type alloy body
For disc brake
Stem: Ø1”, 1-1/8”
Cr-Mo, Alloy
Blade: Alloy #7005-T6
Ø31.8mm, forged ends
Raw, Painting, Polished, finished.
Offset: (regular size)
|
|
For jump bike 20”-26” type
Stem: Ø1”, 1-1/8” Cr-Mo, Alloy
Blade: Alloy #7005-T6 Ø31.8mm, forged ends
For disc brake
MARGURA system
Raw, Painting, Hi-Polished finished
Offset: o45mm (regular size)
|
|
For jump bike 20”-26” type
For V-brake and disc brake Hi-Ten,
Cr-Mo are available
Blade: Ø31.8mm, forged ends
Raw, Painting, cp, finished, polished.
Offset: (regular size)
|
|
For Road 700C & 650C wheel size
Stem: OD 1”, 1-1/8”, Cr-Mo, Alloy
For Integrated headset, Ø 45mm.47mm.50mm
Blade: Alloy #7005-T-6,
Triangle shape, Ø36mm x 20mm, forged ends
Raw, Ø17mm Tip
Painting, Hi-Polished finished
Offset: 43mm.45mm |
|
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|

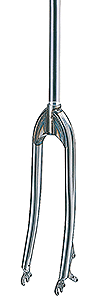

JS-502 |
|

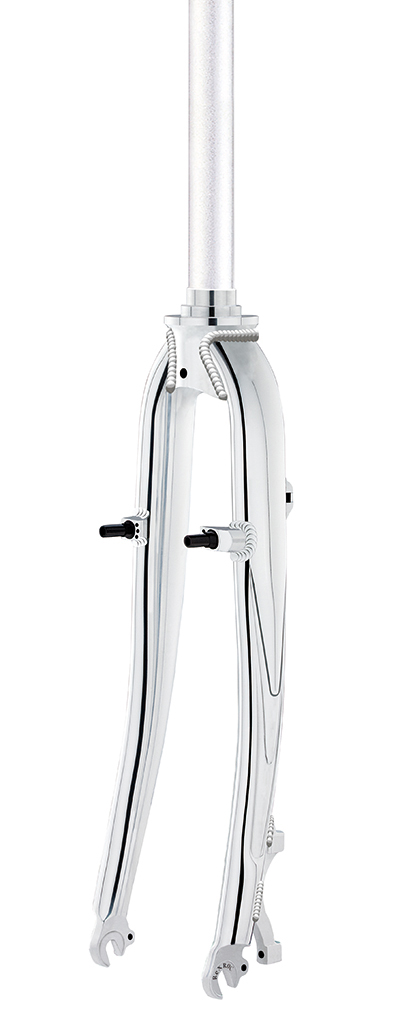

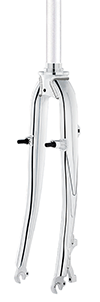

JS-2675 |
|
| |
|
For Road 700C & 650C wheel size
Stem: OD 1”, 1-1/8”, Cr-Mo, Alloy
Blade: Alloy #7005-T6,
Triangle shape, 36mm x 20mm, forged ends Ø17mm Tip
Raw, Painting, Hi-Polished finished
Offset: 45mm±2mm
|
|
For jump bike 24-26” type
Stem: Ø1”, 1-1/8”
Blade: Hummock shape in Ø28.6mm
For disc brake Hi-Ten, Forged ends Ø22mm Tip
Cr-Mo body are available
Raw, Painting, CP, Finished, polished.
Offset: 45mm(regular size)
|
|
For jump bike 24-26” type
Stem: Ø1”, 1-1/8”
Blade: Hummock shape in Ø 28.6mm
For disc brake Hi-Ten,
Forged ends Ø 22mm Tip
Cr-Mo body are available
Raw, Painting, CP, Finished, polished.
Offset: 45mm(regular size)
|
|
For700cTrekking
Stem:Alloy, Cr-Mo Ø11/8"
CNC sleeved Ø11/2"
For Integrated head set Ø62mm
Blades:Alloy #7005-T6, Dual hummock shape Ø43mm x 23mm
Forged ends (tip Ø23 mm)
Tire clearance: 68mm
Offset:45mm
Raw, Painting, Hi-Polished finished
JS-2675 With Disc brake post mount +
V brake pivots
JS-2676 With Disc brake post mount
JS-2677 With V brake pivots
JS-2678 With Roller brake hook |
|
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
JS-2695 |
|
JS-2323 |
|
|
|
|
|
| |
|
For 700C Hybrid
Stem: Alloy, Cr-Mo Ø11/8"
CNC sleeved Ø11/2"
For Integrated head set Ø62mm
Blades: Alloy #7005-T6, aero shape Ø40mm x 23mm forged ends
(tip Ø 23mm)
Tireclearance: 60mm
Offset: 45mm
Raw, Painting, Hi-Polished finished
JS-2695 With
Disc brake post mount
+ V brake pivots
JS-2696 With
Disc brake post mount
JS-2697 With
V brake pivots
JS-2698 With
Roller brake hook
|
|
For road 700C & 650C wheel size
Stem: OD 1”, 1-1/8” Cr-Mo, Alloy
For Integrated headset,Ø45mm.47mm.50mm
Blade: Alloy #7005-T6,
Hummock shape, 28mm x 20mm, forged ends. Ø17mm Tip
Raw, Painting, Hi-Polished finished.
Offset: 43mm.45mm
|
|
|
|
|
|
|
|
